Product Details:
|
| Size: | 8.4 Inch | Resolution: | 800×600 |
|---|---|---|---|
| Brightness: | 600 | C/R: | 1000:1 |
| View Angle: | 88/88/88/88 | Colors: | 262K/16.7M |
| Backlight: | Interface | Touchscreen: | Without |
| Signal Type: | LVDS (1 Ch, 6/8-bit) ,Connector 20 Pins | ||
| High Light: | AA084SC01 TFT LCD Panel,AA084SC01 LCD Panel,AA084SC01 TFT Panel |
||

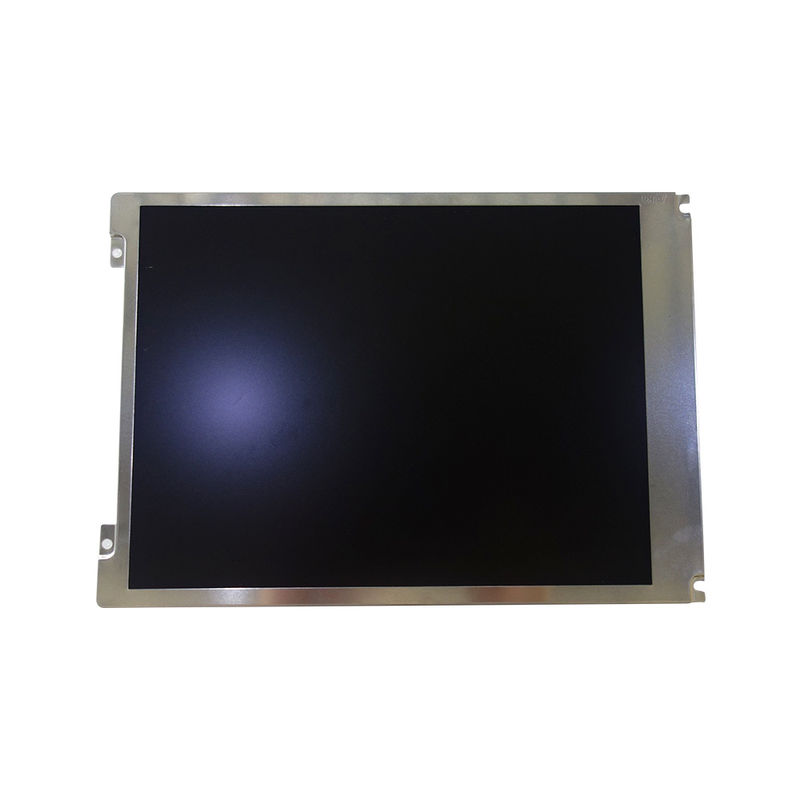

8.4 Inch 800*600 AA084SC01 TFT LCD Panel For Industrial
1.Mitsubishi AA084SC01 Mechanical Features:
| Screen Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.4×127.8 mm | 174.9×132.2 mm | 199.5×149 mm | 9.7 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 330g (Typ.) | - | Antiglare, Hard coating (3H) | ||
2.Mitsubishi AA084SC01 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | SWV, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 88/88/88/88 (Typ.)(CR≥10) | 12/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 97% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.30 (Max.)(5 points) | ||
3.Mitsubishi AA084SC01 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 100K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-S6P-HFE | 1 pcs | 6 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±1.2V | 400/480mA (Typ./Max.) | |||||
4.Mitsubishi AA084SC01 Interface Features:
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 310/650mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration  |
| I-PEX | 20186-020E-11F | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010H | |
