Product Details:
|
| Size: | 7 Inch | Resolution: | 800*480 |
|---|---|---|---|
| Brightness: | 400 | C/R: | 800:1 |
| View Angle: | 80/80/60/80 | Colors: | 262K/16.7M |
| Backlight: | WLED | Luminance: | 400 Cd/m² (Typ.) |
| View Direction: | 12 O'clock | Touch Panel: | Without |
| Support Color: | 262K/16.7M 50% NTSC | ||
| Highlight: | lcd display white screen,lcd panel screen |
||

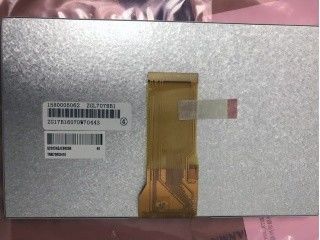

1. TIANMA TM070RDH10-40 Mechanical Details
| Pixel Features : |
Resolution:800(RGB)×480, WVGA
Dot Pitch(mm):0.0642×0.1790 (H×V)
Pixel Format:RGB Vertical Stripe
Pixel Pitch(mm):0.1926×0.1790 (H×V)
|
|---|---|
| Mechanical Size : |
Active Area(mm):154.08(H) × 85.92(V)
Bezel Area(mm):157.08(H) × 89.39(V)
Outline Dim.(mm):164.9(H) × 100(V)
Depth(mm):5.7±0.3
|
| Outline Features : |
Form Style:Flat Rectangle
Shape Style:-
Aspect Ratio:16:9 (H:V)
Orientation:Landscape type
|
| Mounting : |
Without
|
| Other Spec : |
Weight:160g (Typ.)
Treatment:Antiglare
|
2. TIANMA TM070RDH10-40 Optical Details
| Pixel Features : |
Resolution
800(RGB)×480, WVGA
Dot Pitch(mm)
0.0642×0.1790 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1926×0.1790 (H×V)
|
|---|---|
| Mechanical Size : |
Active Area(mm)
154.08(H) × 85.92(V)
Bezel Area(mm)
157.08(H) × 89.39(V)
Outline Dim.(mm)
164.9(H) × 100(V)
Depth(mm)
5.7±0.3
|
| Outline Features : |
Form Style
Flat Rectangle
Shape Style
-
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
|
| Mounting : |
Without
|
| Other Spec : |
Weight
160g (Typ.)
Treatment
Antiglare
|
3.TIANMA TM070RDH10-40 Interface Detail
| Signal Electrical : |
Voltage Supply
3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Current Supply
10/30/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL)
|
|---|---|
| Signal Type : |
Parallel RGB (1 ch, 6/8-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
|
| Interface Features : |
Position
-
Type
FPC
|
| Interface Detail : |
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
0.5 mm
50 pins
1 pcs
DRGB-50P1C8B-115A
|
