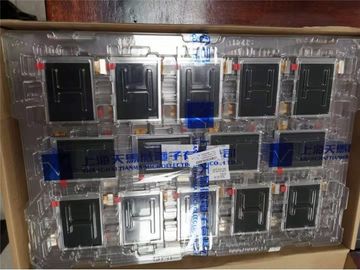

Product Details:
|
| Size: | 3.5 Inch | Composition: | LCM |
|---|---|---|---|
| Resolution: | 480×640 | Brightness: | 300 |
| C/R: | 500:1 | View Angle: | 70/70/60/70 |
| Colors: | 262K | Backlight: | WLED |
| Interface: | TTL | ||
| Highlight: | lcd display white screen,lcd panel screen |
||
1. TIANMA TM035WDH01-00 Mechanical Details
| Pixel Features : |
Number of Pixel
480(RGB)×640, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.037×0.111 mm
Pixel Pitch(W×H)
0.111×0.111 mm
|
|---|---|
| Physical Size : |
Active Viewing
53.28(W)×71.04(H) mm
Overall Dim.
64(W)×85(H) mm
Bezel Opening
56.44(W)×74.32(H) mm
Overall Depth
3.0±0.2 mm
|
| Outline Features : |
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
3:4
Shape Style
-
|
| Other Detail : |
Mass
34.0g
Surface
Antiglare
|
2. TIANMA TM035WDH01-00 Optical Details
| Basic Detail : |
Luminance
300 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
9 o'clock
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
|
|---|---|
| Color Performance : |
Chromaticity
Wx:0.301; Wy:0.321
Support Color
262K (6-bit)
Color Temperature
7272K
White Variation
1.33/1.43 (Typ./Max.)(9 points)
|
3. TIANMA TM035WDH01-00 Lightting Details
| Lamp Features : |
Lamp Type
WLED
Amount
6S1P
Position
Edge light type
Exchange
-
Lamp Shape
1 string
Lamp Life
-
|
|---|---|
| Lamp Electrical : |
Input Voltage
19.2V (Typ.)
Input Current
20mA (Typ.)
Consumption
0.384W (Typ.)
|
| Interface Features : |
Position
-
Type
Included in panel signal interface
|
| Backlight Driver : |
No
|
