A-Si TFT-LCD LCM Auo Display Panel 13.3'' 1920×1080 G133HAN02.0 For Gaming / Medical Imaging

Large Image : A-Si TFT-LCD LCM Auo Display Panel 13.3'' 1920×1080 G133HAN02.0 For Gaming / Medical Imaging

Product Details:

Place of Origin:	Japan
Brand Name:	AUO
Certification:	ISO9001
Model Number:	G133HAN02.0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time:	1-3 Working Days
Payment Terms:	T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability:	500PCS

Contact Now

A-Si TFT-LCD LCM Auo Display Panel 13.3'' 1920×1080 G133HAN02.0 For Gaming / Medical Imaging

Description

Size:	13.3 Inch	Resolution:	1920×1080
Brightness:	400 Cd/m² (Typ.)	Contrast Ratio:	800:1 (Typ.) (TM)
View Direction:	Symmetry	Response Time:	27 (Typ.)(Tr+Td)
Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)	Touch Panel:	Without
Power Supply:	3.3V (Typ.)	Designed For:	Gaming And Medical Imaging
Highlight:	auo display panel , auo lcd screen

1.General Description

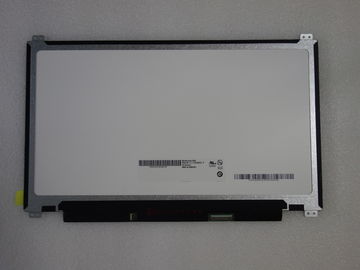

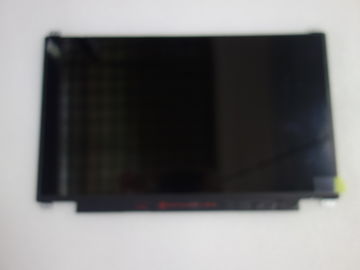

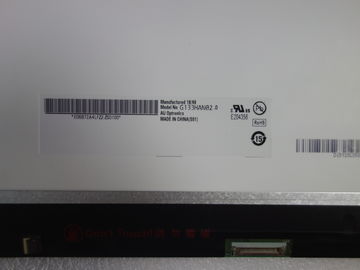

G133HAN02.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system.

The screen format is intended to support the 16:9 FHD, 1920(H) x1080(V) screen and 16.2M colors with LED backlight driving circuit.

All input signals are eDP (Embedded DisplayPort) interface compatible.

G133HAN02.0 is designed for industrial display applications.

2.AUO G133HAN02.0 Optical Details

Luminance(cd/m²)	400(Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry	Response(ms)	27 (Typ.)(Tr+Td)
White Coordinate	Wx:0.313; Wy:0.329	Display Colors	16.2M (6-bit + FRC)
Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(5 points)
NTSC Ratio	46%	sRGB	64% coverage
Adobe RGB	48% coverage	DCI-P3	47% coverage
Rec.2020	34% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.Service
