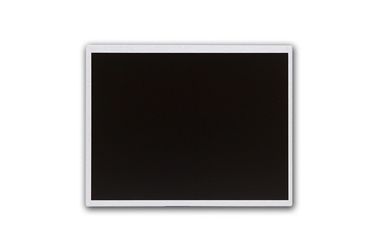

Product Details:
|
| Size: | 10.4 Inch | Resolution: | 800×600 |
|---|---|---|---|
| Brightness: | 400 | C/R: | 700:1 |
| View Angle: | 80/80/70/70 | Colors: | 262K/16.2M |
| Backlight: | WLED | Interface: | LVDS |
| Highlight: | lcd display panel,innolux lcd screen |
||
1.2 FEATURES
- Wide viewing angle
- High contrast ratio
- Fast response time
- SVGA (800 x 600 pixels) resolution
- Wide operating temperature
- DE (Data Enable) mode
- LVDS (Low Voltage Differential Signaling) interface
- Reversible scan direction
- RoHS Compliance
1.3 APPLICATION
- TFT LCD Monitor
- Industrial Application
- Amusement
1.4 GENERAL SPECIFICATI0NS
| Item | Specification | Unit | Note |
| Diagonal Size | 10.4 | inch |
(1) |
| Active Area | 211.2(H) x 158.4(V) | mm | |
| Bezel Opening Area | 214.8 x 162.7 | mm | |
| Driver Element | a-si TFT active matrix | - | - |
| Pixel Number | 800 x R.G.B. x 600 | pixel | - |
| Pixel Pitch | 0.264(H) x 0.264(V) | mm | - |
| Pixel Arrangement | RGB vertical stripe | - | - |
| Display Colors | 262k/16.2M | color | - |
| Transmissive Mode | Normally white | - | - |
| Surface Treatment | Hard coating (3H), AG | - | - |
| Module Power Consumption | (4.8 ) | W | Typ. |
1.5 MECHANICAL SPECIFICATIONS
| Item | Min. | Typ. | Max. | Unit | Note | |
Module Size | Horizontal (H) | 242.5 | 243 | 243.5 | mm |
(1) |
| Vertical (V) | 183.5 | 184 | 184.5 | mm | ||
| Depth (D) | - | (8.0) | (8.5) | mm | ||
| Weight | - | (355) | - | g | - | |
| I/F connector mounting position | The mounting inclination of the connector makes the screen center within ±0.5mm as the horizontal. | - | (2) | |||
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the response time will become slowly.
Do not keep same pattern in a long period of time. It may cause image sticking on LCD
