Product Details:
|
| Panel Brand: | AUO | Panel Model: | G270ZAN01.3 |
|---|---|---|---|
| Panel Size: | 27.0 Inch | Panel Type: | A-Si TFT-LCD, LCM |
| Frequency: | 144Hz | Touch Screen: | Without |
| Highlight: | auo display panel,auo lcd display |
||

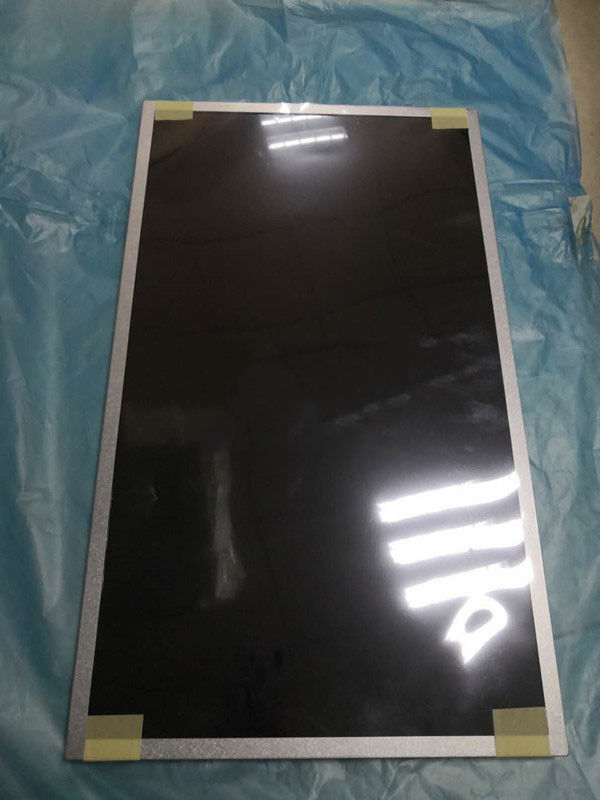

G270ZAN01.3 AUO 27 inch LCM 3840×2160 Touch screen
AUO G270ZAN01.3 Mechanical Details
| Pixel Features : | Pixel Format |
| 3840(RGB)×2160, UHD | |
| Dot Pitch | |
| 0.05175×0.15525 mm (H×V) | |
| Configuration | |
| RGB Vertical Stripe | |
| Pixel Pitch | |
| 0.15525×0.15525 mm (H×V) | |
| Mechanical Size : | Display Area |
| 596.16×335.14 mm (H×V) | |
| Bezel Area | |
| - | |
| Outline Features : | Form Factor |
| Flat Rectangle | |
| Orientation | |
| Landscape type | |
| Aspect Ratio | |
| 16:9 (H:V) | |
| Shape Style | |
| - |
AUO G270ZAN01.2 Optical Details
| Basic Information : | Brightness |
| 800 cd/m² (Typ.) | |
| Contrast Ratio | |
| 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle | |
| 89/89/89/89 (Typ.)(CR≥10) | |
| Optical Mode | |
| AHVA, Normally Black, Transmissive | |
| Viewing Direction | |
| Symmetry | |
| Response Time | |
| 16 (Typ.)(Tr+Td) ms | |
| Color Performance : | Chromaticity |
| Wx:0.313; Wy:0.329 | |
| Color Numbers | |
| 16.7M (8-bit) | |
| Color Gamut | |
| 90% NTSC (CIE1931) | |
| Uniformity | |
| 1.18/1.25 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility |
| Sunlight Readable | |
| Transmittance | |
| - |
AUO G270ZAN01.2 Electronics Details
| Frame Frequency : | 144Hz |
| Reverse Scan : | No |
We also have other industrial LCD panels, pls contact to us for the further information
