Product Details:
|
| Manufacturer: | AUO | Model Name: | G230HAN01.0 |
|---|---|---|---|
| Screen Size: | 23.0 Inch | Screen Type: | LCM, A-Si TFT-LCD |
| Refresh Rate: | 60Hz | Touchscreen: | Without |
| Highlight: | auo display panel,auo lcd screen |
||

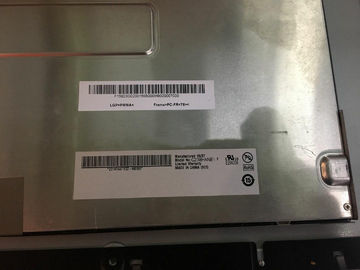

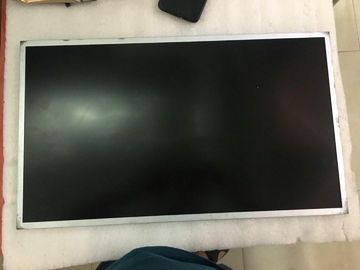

G230HAN01.0 AUO 23 inch LCM 1920×1080 LCD screen
| Panel Model | G230HAN01.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,23.0 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | AHVA, Normally Black, Transmissive |
| Active Area | 509.184×286.416 mm |
| Outline | 533.2×312×11 mm |
| Surface | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 72% |
| Response Time | 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Panel Model | G230HAN01.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,23.0 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Dot Resolution | 1920(RGB)×1080 (FHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 95 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0884×0.2652 mm (H×V) |
| Pixel Pitch | 0.2652×0.2652 mm (H×V) |
| Surface | Antiglare |
| Active Area | 509.184×286.416 mm (H×V) |
| Outline Dimension | 533.2×312 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
We also have other industrial LCD panels, pls contact to us for the further information
