Product Details:
|
| Panel Model: | LQ050W1LA0A | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 1024×600 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 109.1×63.9 Mm | Outline: | 119×76.3×5.6 Mm |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||
New and original LQ050W1LA0A SHARP a-Si TFT-LCD ,5.0 inch, 1024×600 for Medical Imaging
| Panel Model | LQ050W1LA0A |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,5.0 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -25 ~ 70 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 238 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.035×0.106 mm (H×V) |
| Pixel Pitch | 0.106×0.106 mm (H×V) |
| Weight | 67/72g (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 109.1×63.9 mm (H×V) |
| Bezel Area | 111.5×66.3 mm (H×V) |
| Outline Dimension | 119×76.3 mm (H×V) |
| Outline Depth | 3.65/5.60 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel |
Embeded (4-wire Resistive)
|
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.334 |
| White Variation | 1.10/1.30 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
| Reverse Scan | No |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK600D3HE14 | SHARP | 60" | 1920×1080 |
| LQ170E1FG21F | SHARP | 17.0" | 1280×1024 |
| LK315T3HB87 | SHARP | 31.5" | 1366×768 |
| LK315D3HA84 | SHARP | 31.5" | 1920×1080 |
| LK400D3HB34 | SHARP | 40" | 1920×1080 |
| LK400D3HB7K | SHARP | 40" | 1920×1080 |
| LK420D3HA09 | SHARP | 42" | 1920×1080 |
| LK315D3HA9K | SHARP | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information

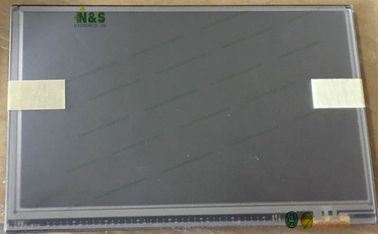

LQ050W1LA0A pictures
