Product Details:
|
| Panel Model: | COM41H4M31XLC | Panel Brand: | ORTUSTECH |
|---|---|---|---|
| Descrition: | 480×640 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 53.28×71.04 Mm | Outline: | 63.5×85×4.53 Mm |
| Highlight: | industrial touch screen display,industrial lcd screen |
||
COM41H4M31XLC ORTUSTECH a-Si TFT-LCD ,3.5 inch, 480×640 for Industrial Application
| Panel Model | COM35H3M73ULC |
|---|---|
| Panel Brand | ORTUSTECH |
| Descrition | a-Si TFT-LCD ,3.5 inch, 480×640 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Blanview; left side 2 in 1 FPC (25.0mm length) |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Dot Resolution | 480(RGB)×640 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 228 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.037×0.111 mm (H×V) |
| Pixel Pitch | 0.111×0.111 mm (H×V) |
| Weight | 30.8g |
| Surface | Hard coating (3H) |
| Active Area | 53.28×71.04 mm (H×V) |
| Bezel Area | 57.44×75.32 mm (H×V) |
| Outline Dimension | 63.5×85 mm (H×V) |
| Outline Depth | 3.03/4.5 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
| Display Mode | Buenaview, Normally Black, Transflective |
|---|---|
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 5.5:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Response Time | 40/60 (Max.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CMG23C1-T0 | ORTUSTECH | 2.3" | 120×110 |
| CMD520TT00-C1 | ORTUSTECH | 5.1" | 320×240 |
| CMD510TT00-C1 | ORTUSTECH | 3.8" | 320×240 |
| MD286TT00-C1 | ORTUSTECH | 10.4" | 640×480 |
| CMD500TT10-C1 | ORTUSTECH | 3.2" | 320×240 |
| COG26T2764UX | ORTUSTECH | 2.6" | 240×400 |
| COM30T3173K | ORTUSTECH | 3.0" | 320×240 |
| COM25T2806T | ORTUSTECH | 2.5" | 640×240 |
We also have other industrial LCD panels, pls contact to us for the further information

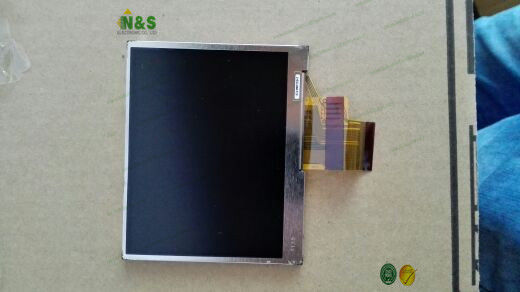

COM41H4M31XLC pictures
