Product Details:
|
| Panel Model: | TD028TTEC1 | Panel Brand: | TPO |
|---|---|---|---|
| Descrition: | 480×640 | Panel Type: | LTPS TFT-LCD |
| Active Area: | 43.2×57.6 Mm | Outline: | 52.9×73.7×3.5 Mm |
| Highlight: | industrial touch screen display,industrial lcd screen |
||
New and original TD028TTEC1 TPO LTPS TFT-LCD ,2.8 inch, 480×640 for Industrial Application
| Panel Model | TD028TTEC1 |
|---|---|
| Panel Brand | TPO |
| Descrition | LTPS TFT-LCD ,2.8 inch, 480×640 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
| Remarks | 3 in 1 FPC |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
| Dot Resolution | 480(RGB)×640 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 282 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.030×0.090 mm (H×V) |
| Pixel Pitch | 0.090×0.090 mm (H×V) |
| Weight | 25±3G |
| Surface | Hard coating (3H) |
| Active Area | 43.2×57.6 mm (H×V) |
| Outline Dimension | 52.9×73.7 mm (H×V) |
| Outline Depth | 3.24/3.5 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 65% NTSC (CIE1931) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 55/55/55/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.313 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
The reasons you choose us
1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h
ard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
| Reverse Scan | No |
|---|---|
| Total Power Consumption | 355.9mW (Typ.) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TD028TTEB4 | TPO | 2.8" | 240×320 |
| TD028TTEB3 | TPO | 2.8" | 240×320 |
| TD028TTEB2 | TPO | 2.8" | 240×320 |
| TD028TTEB1 | TPO | 2.8" | 240×320 |
| 990001493 | TPO | 3.0" | 960×480(dot) |
| 990001349 | TPO | 3.0" | 960×480(dot) |
| 990001427 | TPO | 2.7" | 960×480(dot) |
| 990000004 | TPO | 2.6" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information

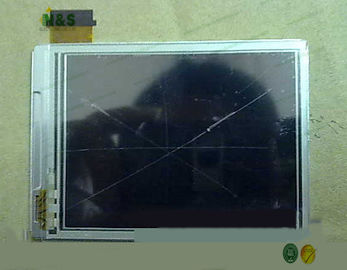

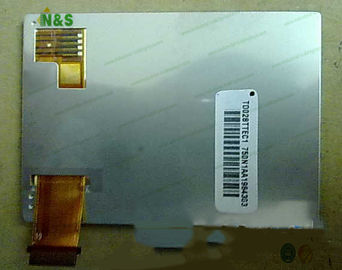

TD028TTEC1 pictures
