Product Details:
|
| Panel Model: | G101EVN01.2 | Panel Brand: | AUO |
|---|---|---|---|
| Descrition: | 1280×800 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 216.96×135.6 Mm | Outline: | 227.91×148×8.34 Mm |
| Highlight: | auo lcd screen,auo lcd display |
||
New and original G101EVN01.2 AUO a-Si TFT-LCD ,10.1 inch, 1280×800 for Medical Imaging
| Panel Model | G101EVN01.2 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1280(RGB)×800 (WXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Surface | Hard coating, Reflection 1.5% (Typ.) |
| Active Area | 216.96×135.6 mm (H×V) |
| Bezel Area | 220.36×139.1 mm (H×V) |
| Outline Dimension | 227.91×148 mm (H×V) |
| Outline Depth | 8.34 (Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
| Display Mode | MVA, Normally Black, Transmissive |
|---|---|
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.43 (Max.)(5 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.c
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T546HW02 V5 CELL | AUO | 55" | 1920×1080 |
| T645HF02 V0 CELL | AUO | 65" | 1920×1080 |
| B070VTN01.0 | AUO | 7.0" | 800×480 |
| T650HVN12.2 CELL | AUO | 65" | 1920×1080 |
| A070EAN01.1 | AUO | 7.0" | 800×1280 |
| B070EAN01.4 CELL | AUO | 7.0" | 800×1280 |
| T500HVN01.1 CELL | AUO | 50" | 1920×1080 |
| T430HVN02.0 CELL | AUO | 43" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information

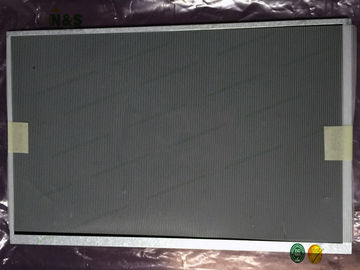

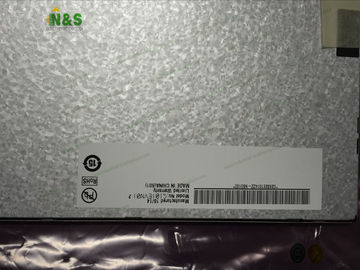

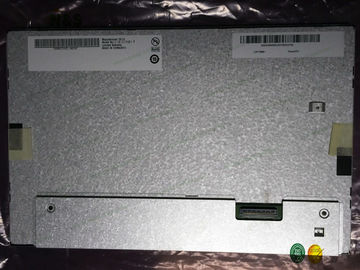

G101EVN01.2 pictures
