Product Details:
|
| Panel Model: | LB104V03-A1 | Panel Brand: | LG. LCD |
|---|---|---|---|
| Descrition: | 640×480 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 211.2×158.4 Mm | Outline: | 236×180×10.5 Mm |
| Highlight: | medical lcd panel,medical grade display |
||
LB104V03-A1 LG. LCD a-Si TFT-LCD ,10.4 inch, 640×480 60Hz
| Panel Model | LB104V03-A1 |
|---|---|
| Panel Brand | LG. LCD |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LB104V03 (A1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 490g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.6×163.0 mm (H×V) |
| Outline Dimension | 236×180 mm (H×V) |
| Outline Depth | 8.0/10.5 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 5/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.295; Wy:0.325 |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 6.3W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
| LC550EUJ-SER1 | LG Display | 55" | 1920×1080 |
| LC470EUJ-SER1 | LG Display | 47" | 1920×1080 |
| LH600WF3-SH01 | LG Display | 6.0" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information

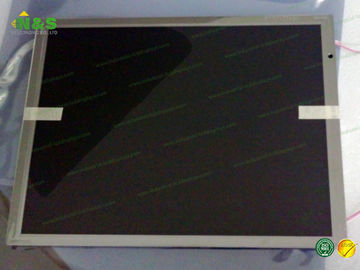

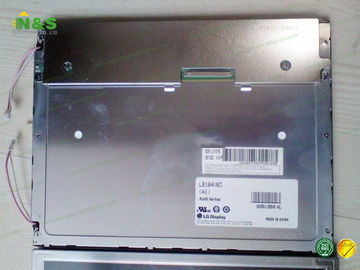

LB104V03-A1pictures
