Product Details:
|
| Panel Model: | LM310UH1-SLA1 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 4096×2160 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 696.73×367.42 Mm | Outline: | 730.4×401.2 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||
LM310UH1-SLA1 LG Display a-Si TFT-LCD ,31.0 inch, 4096×2160 for 60Hz
| Panel Model | LM310UH1-SLA1 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,31.0 inch, 4096×2160 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LM310UH1 (SL)(A1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
| Dot Resolution | 4096(RGB)×2160 |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0567×0.1701 mm (H×V) |
| Pixel Pitch | 0.1701×0.1701 mm (H×V) |
| Weight | TBD |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 696.73×367.42 mm (H×V) |
| Bezel Area | 701.6×372.4 mm (H×V) |
| Outline Dimension | 730.4×401.2 mm (H×V) |
| Outline Depth | 17.3 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
| Display Mode | AH-IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 1.07B (10-bit) |
| Color Gamut | Adobe RGB |
| Response Time | TBD |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC490EQY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490DUJ-SGE4 | LG Display | 49" | 1920×1080 |
| LC490EGY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHF1 | LG Display | 49" | 3840×2160 |
| LC490EGJ-SHA1 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHA1 | LG Display | 49" | 3840×2160 |
| LM238WF2-SJF1 | LG Display | 23.8" | 1920×1080 |
| LH350H02-FH01 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information

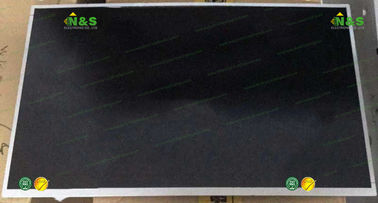

LM310UH1-SLA1 pictures
