Product Details:
|
| Panel Model: | LM290WW2-SSA1 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 2560×1080 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 672.768×283.824 Mm | Outline: | 693.6×308.9×17.5 Mm |
| Highlight: | industrial touch screen display,industrial lcd screen |
||
LM290WW2-SSA1 LG Display a-Si TFT-LCD ,29.0 inch, 2560×1080 for 60Hz
| Panel Model | LM290WW2-SSA1 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,29.0 inch, 2560×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LM290WW2 (SS)(A1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Borderless |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Dot Resolution | 2560(RGB)×1080 (CSHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 21:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0876×0.2628 mm (H×V) |
| Pixel Pitch | 0.2628×0.2628 mm (H×V) |
| Weight | 3.12/3.28Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 672.768×283.824 mm (H×V) |
| Outline Dimension | 693.6×308.9 mm (H×V) |
| Outline Depth | 11.0/17.5 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting holes |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | sRGB |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
We can do for You:
1Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 22.2W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LH350H01-FH01 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information

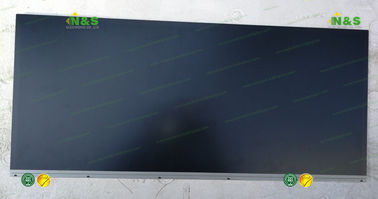

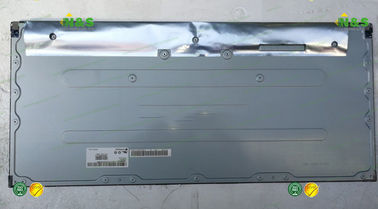

LM290WW2-SSA1 pictures
