Product Details:
|
| Diagonal Size: | 10.4 Inch | View Direction: | 6 O'clock |
|---|---|---|---|
| Touch Panel: | Without | Configuration: | RGB Vertical Stripe |
| Power Supply: | 3.3/5.0V | Type: | A-Si TFT-LCD |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
| Panel Model | LQ104V1DG5A |
|---|---|
| Panel Brand | SHARP |

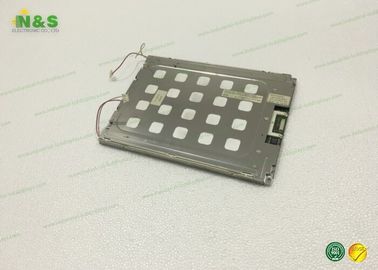

| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 246.5×179.4×15.5 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage | 3.3/5.0V (Typ.) |
| Panel Model | LQ104V1DG5A |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 65 °C |
| Storage Temperature | -30 ~ 70 °C |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Contact Person: savvy,ren
Tel: +8613302928193
