Product Details:
|
| Panel Type: | FSTN-LCD , LCM | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Touchscreen: | Without | Mass: | 155g |
| Arrangement: | RGB Vertical Stripe | Screen Type: | A-Si TFT-LCD |
| High Light: | industrial touch screen display,industrial lcd screen |
||

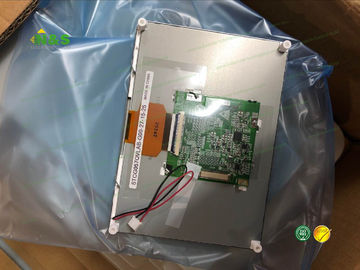

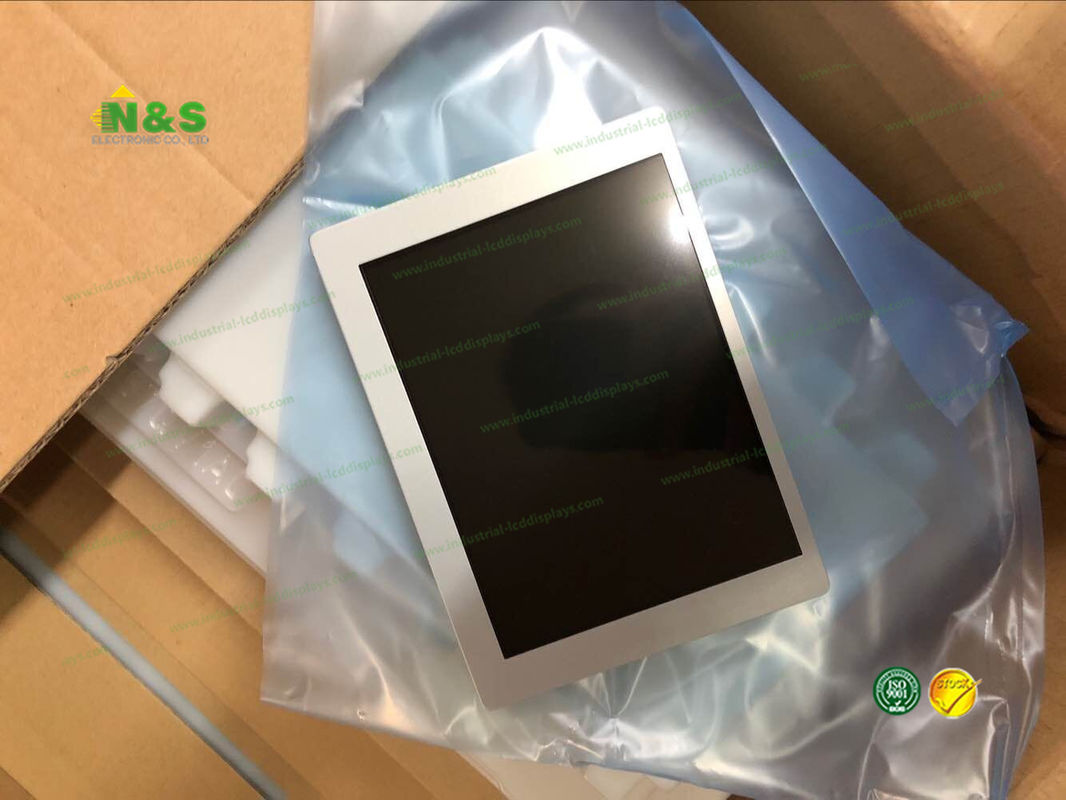

Normally White 5.7 inch LCM 320×240 STCG057QVLAB-G00 for Industrial Application
STCG057QVLAB-G00 Information
| Panel Model | STCG057QVLAB-G00 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 115.2×86.4 mm |
| Outline | 144×104.8×13.5 mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type | WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage | 3.3V (Typ.) |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

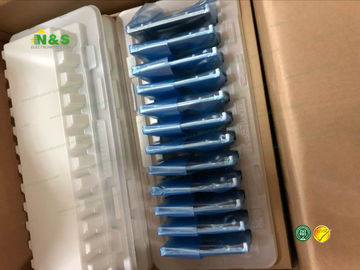

Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| KCS072VG1MJ-G40 | Kyocera | 7.2" | 640×480 |
| KCS6448MSTT-X1 | Kyocera | 7.2" | 640×480 |
| F-51430NFU-FW-AEN | Kyocera | 9.4" | 640×480 |
| F-51430NFU-FW-AA | Kyocera | 9.4" | 640×480 |
| KCL6448HSTT-X14 | Kyocera | 9.4" | 640×480 |
| KCL6448HSTT-X12 | Kyocera | 9.4" | 640×480 |
| KCS057QV1BM-G20 | Kyocera | 5.7" | 320×240 |
| KCG047QV1AA-G02 | Kyocera | 4.7" | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7" | 320×240 |
| KCB104VG2CG-G20 | Kyocera | 10.4" | 640×480 |
| KS3224ASTT-FW-X13 | Kyocera | 5.7" | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7" | 320×240 |
| KCS6448BSTT-X1 | Kyocera | 10.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Model | STCG057QVLAB-G00 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
