Product Details:
|
| Panel Size: | LQ104S1DG2A | Panel Brand: | SHARP |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Frequency: | 60Hz |
| Color: | White | Active Area: | 211.2×158.4 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

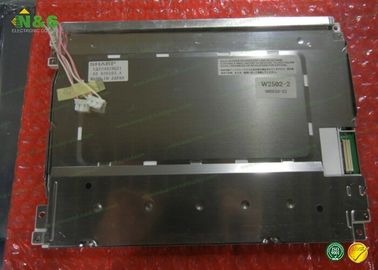

Normally White LQ104S1DG2A 10.4 inch LCM 800×600 350 for Industrial Application
LQ104S1DG2A Basic Information
| Panel Model | LQ104S1DG2A |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 246.5×179.4 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | CMOS (1 ch, 6-bit) , 41 pins |
| Input Voltage | 3.3/5.0V (Typ.) |
| Dot Resolution | 800(RGB)×600 (SVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 620g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 214.6×162.4 mm (H×V) |
| Outline Dimension | 246.5×179.4 mm (H×V) |
| Outline Depth | 15.5 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-3.4×4.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
