Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 8.9 Inch |
|---|---|---|---|
| Resolution: | 1024×600 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 195.072×113.4 Mm | Outline: | 213.36×129.55×4.9 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

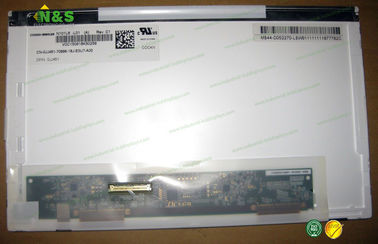

8.9 inch N089L6-L03 TFT LCD Module CMO with 195.072×113.4 mm Active Area Surface Antiglare, Hard coating (3H)
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TV070WSU-N40 | BOE | 7.0" | 600×1024 |
| LS320PUWTH | PANDA | 31.5" | 1366×768 |
| TT4851D01-4 | CSOT | 49" | 3840×2160 |
| ST4761B01-6 | CSOT | 48" | 1920×1080 |
| LC420EGY-SGM1 | LG Display | 42" | 3840×2160 |
| H466TAN01.4 | AUO | 4.7" | 720×1280 |
| BF045WVE-400 | BOE | 4.5" | 480×854 |
| LC430DUY-SHA1 | LG Display | 43" | 1920×1080 |
| HSD047BMW1-D00 | HannStar | 4.7" | 540×960 |
| HSD070FMW1-A00 | HannStar | 7.0" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
N089L6-L03 Basic Information
| Panel Model | N089L6-L03 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N089L6-L03 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1890 mm (H×V) |
| Pixel Pitch | 0.1905×0.1890 mm (H×V) |
| Weight | 145/155g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 195.072×113.4 mm (H×V) |
| Bezel Area | 198.27×116.6 mm (H×V) |
| Outline Dimension | 213.36×129.55 mm (H×V) |
| Outline Depth | 4.6/4.9 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N089L6-L03 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.40 (Max.)(5 points) |
| Sunlight Readable | N |
