Product Details:
|
| Panel Size: | 14.0 Inch | Resolution: | 1366×768 |
|---|---|---|---|
| Panel Model: | HB140WX1-301 | Surface: | Antiglare, Hard Coating (3H) |
| Highlight: | industrial touch screen display,industrial lcd panel |
||

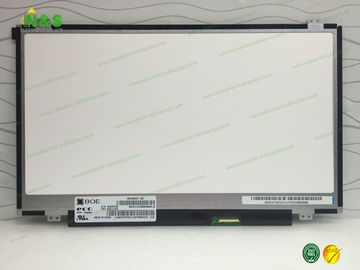

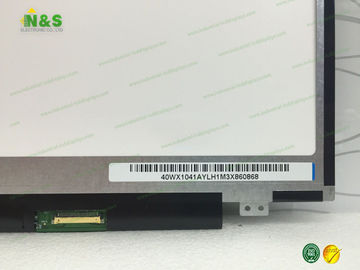

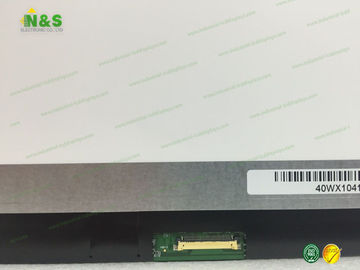

Normally White HB140WX1-301 14.0 inch LCD screen Surface Antiglare, Hard coating (3H) new and original
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
HB140WX1-301 Basic Information
| Panel Model | HB140WX1-301 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | for Lenovo, HP, Dell, Toshiba, LBG, TEG |
HB140WX1-301 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 112 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch | 0.2265×0.2265 mm (H×V) |
| Weight | 320g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 309.399×173.952 mm (H×V) |
| Outline Dimension | 320.4×187.6 mm (H×V) |
| Outline Depth | 3.6 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BT035HVME601 | BOE | 3.5" | 320×480 |
| BT035HVME101 | BOE | 3.5" | 320×480 |
| BT032HVME101 | BOE | 3.2" | 320×480 |
| BT024QVME106 | BOE | 2.4" | 240×320 |
| BT022QCME104 | BOE | 2.2" | 176×220 |
| BT022QCME103 | BOE | 2.2" | 176×220 |
| BF043QHME501 | BOE | 4.3" | 540×960 |
| BF030WQME601 | BOE | 3.0" | 240×400 |
| BT028WQME101 | BOE | 2.8" | 240×400 |
| BT021LCME101 | BOE | 2.1" | 220×176 |
| BT024QVME104 | BOE | 2.4" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information
