Product Details:
|
| Panel Size: | 10.3 Inch | Resolution: | 1280×480 |
|---|---|---|---|
| Active Area: | 243.84×91.44 Mm | Contrast Ratio: | 900:1 (Typ.) |
| Surface: | Antiglare, Hard Coating (3H) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

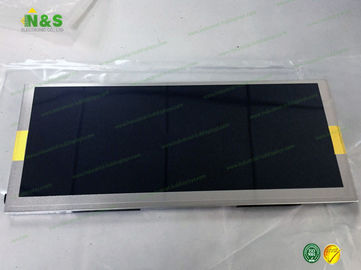

HannStar 10.3 inch HSD103IPW1-A10 1280×480 Normally Black Surface Antiglare, Hard coating (3H)
HSD103IPW1-A10 Basic Information
| Panel Model | HSD103IPW1-A10 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,10.3 inch, 1280×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
HSD103IPW1-A10 Mechanical Features
| Dot Resolution | 1280(RGB)×480 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 8:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 450g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 243.84×91.44 mm (H×V) |
| Bezel Area | 246.84×94.44 mm (H×V) |
| Outline Dimension | 265.2×109.85 mm (H×V) |
| Outline Depth | 7.0/8.65 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD103IPW1-A10 Optical Features
| Display Mode | HS-IPS, Normally Black, Transmissive |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 70% NTSC (CIE1931) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD050FHW1-D00 | HannStar | 5.0" | 720×1280 |
| HSD022F2N6-A00 | HannStar | 2.2" | 176×220 |
| HSD047FMW1-D00 | HannStar | 4.7" | 540×960 |
| HSD047FMW1-C00 | HannStar | 4.7" | 540×960 |
| HSD070IFW1-A00-0220 | HannStar | 7.0" | 1024×600 |
| HSD050F8W1-A00 | HannStar | 5.0" | 480×800 |
| HSD050F8W1-C00 | HannStar | 5.0" | 480×800 |
| HSD022F3N1-A00 | HannStar | 2.2" | 240×320 |
| HSD050FMW2-D00 | HannStar | 5.0" | 540×960 |
| HSD050F8W1-C10 | HannStar | 5.0" | 480×800 |
