Product Details:
|
| Panel Size: | 4.0 Inch | Resolution: | 320×240 |
|---|---|---|---|
| Active Area: | 82.08×61.56 Mm | Outline: | 112.11×80.51×8.3 Mm |
| Contrast Ratio: | 350:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

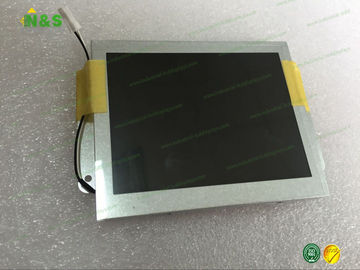

Normally White HSD040I3N1-B00 HannStar Lamp Type WLED Without Driver Outline 112.11×80.51×8.3 mm
HSD040I3N1-B00 Basic Information
| Panel Model | HSD040I3N1-B00 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,4.0 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
HSD040I3N1-B00 Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 99 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0855×0.2656 mm (H×V) |
| Pixel Pitch | 0.2565×0.2656 mm (H×V) |
| Weight | 95/105g (Typ./Max.) |
| Active Area | 82.08×61.56 mm (H×V) |
| Outline Dimension | 112.11×80.51 mm (H×V) |
| Outline Depth | 8.0/8.3 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) on left, right bracket |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
HSD040I3N1-B00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 4700 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/60/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 4:30 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | Y |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD050B8W2-A00 | HannStar | 5.0" | 480×854 |
| HSD040B8W3-A00 | HannStar | 4.0" | 480×854 |
| HSD028FAW1-A00 | HannStar | 2.8" | 240×400 |
| HSD097PXN1-A00-0299 | HannStar | 9.7" | 1024×768 |
| HSD097PXN1-A00-0220 | HannStar | 9.7" | 1024×768 |
| HSD020F2NA-A00 | HannStar | 2.0" | 176×220 |
| HSD030FAW1-A00 | HannStar | 3.0" | 240×400 |
| HSD053F8W1-A00 | HannStar | 5.3" | 480×854 |
| HSD101PFW4-A00-0299 | HannStar | 10.1" | 1024×600 |
| HSD080IDW1-A00-0299 | HannStar | 8.0" | 800×480 |
