Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1280×800 |
|---|---|---|---|
| Contrast Ratio: | 710:1 (Typ.) | Surface: | Antiglare (Haze 40%) |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

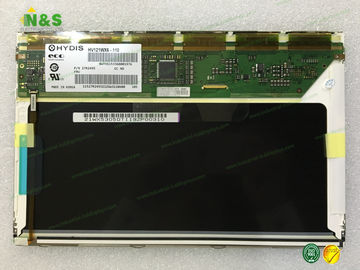

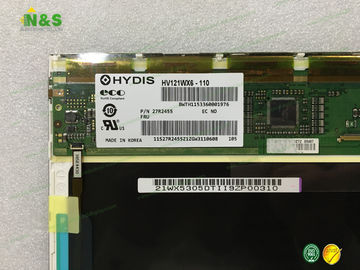

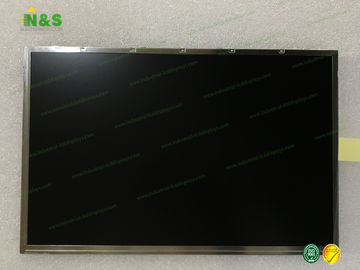

Normally Black HX121WX1-110 HYDIS 12.1 inch 1280×800 Frequency 60Hz Surface Antiglare (Haze 40%)
HX121WX1-110 Basic Information
| Panel Model | HX121WX1-110 |
| Panel Brand | HYDIS |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HX121WX1-110 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 124 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.068×0.204 mm (H×V) |
| Pixel Pitch | 0.204×0.204 mm (H×V) |
| Weight | 265/275g (Typ./Max.) |
| Surface | Antiglare (Haze 40%) |
| Active Area | 261.12×163.2 mm (H×V) |
| Bezel Area | 265.1×167.2 mm (H×V) |
| Outline Dimension | 276.8×180 mm (H×V) |
| Outline Depth | 3.9/6.8 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HX121WX1-110 Optical Features
| Display Mode | AFFS, Normally Black, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 710 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 90/90/90/90 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
