Product Details:
|
| Panel Size: | 20.8 Inch | Resolution: | 2048×1536 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Outline: | 457×350 Mm |
| High Light: | industrial touch screen display,industrial lcd panel |
||

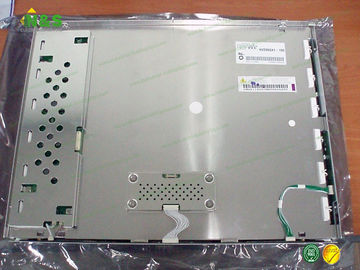

Normally Black HV208QX1-100 with 423.9×318 mm Active Area 20.8 inch high resolution 2048×1536 Frequency 60Hz
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
HV208QX1-100 Basic Information
| Panel Model | HV208QX1-100 |
| Panel Brand | BOE HYDIS |
| Descrition | a-Si TFT-LCD ,20.8 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HV208QX1-100 Mechanical Features
| Dot Resolution | 2048(LCR)×1536 (QXGA) |
| Pixel Configuration | LCR Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Weight | 2.50Kgs (Typ.) |
| Surface | Antiglare (Haze 13%), Hard coating (3H) |
| Active Area | 423.9×318 mm (H×V) |
| Bezel Area | 428.0×322.0 mm (H×V) |
| Outline Dimension | 457×350 mm (H×V) |
| Outline Depth | 45.0 (Typ.) mm |
| Holes & Brackets | Side mounting holes (8 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HV208QX1-100 Optical Features
| Display Mode | AFFS, Normally Black, Transmissive |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | Grayscale (8-bit) |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.294; Wy:0.295 |
| White Variation | 1.25 (Max.)(9 points) |
| Sunlight Readable | Y |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED060SC4 | E Ink | 6.0" | 800×600 |
| ED050SC3 | E Ink | 5.0" | 800×600 |
| ED019OC1 | E Ink | 1.9" | 128×112 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| OEL1M2022-W-E | No Brand | 1.1" | 128×128 |
| VG-9616TSWCG02 | WiseChip | 0.69" | 96×16 |
| UG-2832KLBEG04 | WiseChip | 0.91" | 128×32 |
| UG-7232TMWAG02 | WiseChip | 0.5" | 72×32 |
