Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Resolution: | 1600×1200 | Contrast Ratio: | 600:1 (Typ.) |
| Response Time: | 45 (Typ.)(Tr+Td) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

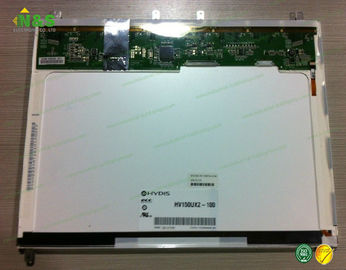

HV150UX2-100 Normally Black 15.0 inch new and original 1600×1200 resolution Outline 317.3×243×7 mm Frequency 60Hz
HV150UX2-100 Basic Information
| Panel Model | HV150UX2-100 |
| Panel Brand | HYDIS |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1600×1200 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HV150UX2-100 Mechanical Features
| Dot Resolution | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 510g (Typ.) |
| Surface | Antiglare (Haze 40%), Hard coating (2H) |
| Active Area | 304.8×228.6 mm (H×V) |
| Bezel Area | 308.4×232.2 mm (H×V) |
| Outline Dimension | 317.3×243 mm (H×V) |
| Outline Depth | 7.0 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HV150UX2-100 Optical Features
| Display Mode | FFS, Normally Black, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 45 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
