Product Details:
|
| Panel Size: | 13.3 Inch | Resolution: | 1280×800 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Outline: | 301.4×196.5×6.5 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||

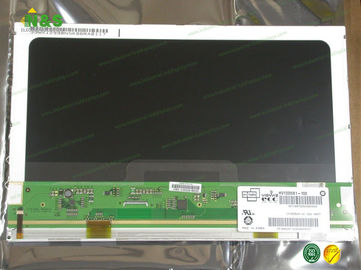

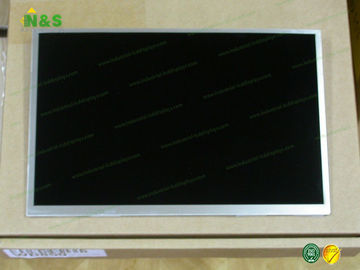

Normally Black HV133WX1-100 Active Area 286.08×178.8 mm 13.3 inch, 1280×800 resolution new and original
HV133WX1-100 Basic Information
| Panel Model | HV133WX1-100 |
| Panel Brand | BOE HYDIS |
| Descrition | a-Si TFT-LCD ,13.3 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HV133WX1-100 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 275±10g |
| Active Area | 286.08×178.8 mm (H×V) |
| Bezel Area | 289.1×181.8 mm (H×V) |
| Outline Dimension | 301.4×196.5 mm (H×V) |
| Outline Depth | 6.5 (Max.) mm |
| Holes & Brackets | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HV133WX1-100 Optical Features
| Display Mode | FFS, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| White Variation | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
