Product Details:
|
| Panel Size: | 21.3 Inch | Active Area: | 422.4×337.92 Mm |
|---|---|---|---|
| Outline: | 459.8×375.3×49 Mm | Contrast Ratio: | 700:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

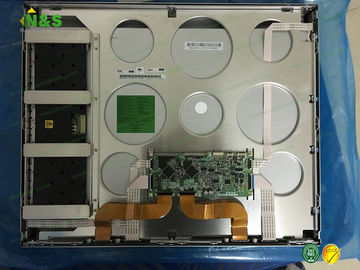

Normally Black TFT LCD MODULE Outline 459.8×375.3×49 mm Display Colors Grayscale (8-bit)
IAQS80F Basic Information
| Panel Model | IAQS80F |
| Panel Brand | IDTech |
| Descrition | a-Si TFT-LCD ,21.3 inch, 2560×2048 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | R213T1-L01 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | with 176x16 pixels sensor window |
IAQS80F Mechanical Features
| Dot Resolution | 2560(LCR)×2048 (QSXGA) |
| Pixel Configuration | LCR Vertical Stripe |
| Pixel Density | 153 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.055×0.165 mm (H×V) |
| Pixel Pitch | 0.165×0.165 mm (H×V) |
| Weight | 2.97Kgs (Typ.) |
| Active Area | 422.4×337.92 mm (H×V) |
| Bezel Area | 426.4×344.5 mm (H×V) |
| Outline Dimension | 459.8×375.3 mm (H×V) |
| Outline Depth | 49.0 (Max.) mm |
| Holes & Brackets | Side mounting holes (6-M3) on left & up, down bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
IAQS80F Optical Features
| Display Mode | DD-IPS, Normally Black, Transmissive |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | Grayscale (8-bit) |
| Response Time | 25/25 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.294; Wy:0.309 |
| Sunlight Readable | Y |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V236BJ1-P03 | Innolux | 23.6" | 1366×768 |
| PH035NA-01B | Innolux | 3.5" | 320×480 |
| PH040NA-01B | Innolux | 4.0" | 480×800 |
| PH045NA-01A | Innolux | 4.5" | 480×854 |
| PH045NA-01B | Innolux | 4.5" | 480×854 |
| PB050IA-01A | Innolux | 5.0" | 540×960 |
| ZE065NA-01B | Innolux | 6.5" | 800×480 |
| ZE050NA-08D | Innolux | 5.0" | 640×480 |
| N070ICN-PB1 | Innolux | 7.0" | 800×1280 |
| N156BGE-P41 | Innolux | 15.6" | 1366×768 |
| V500HJ1-PE8 | Innolux | 50" | 1920×1080 |
| V400HJ6-PE1 | Innolux | 40" | 1920×1080 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
IAQS80F Backlight System
| Lamp Position | Direct light type |
| Lamp Type | CCFL |
| Lamp Amount | 12 pcs |
| Lamp Life Time | 50K(Typ.) (Hours) |
| Interface Type | Connector |
| Lamp Driver Board | 44/50W (Typ./Max.) |
