Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 11.6 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Active Area: | 256.125×144 Mm |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

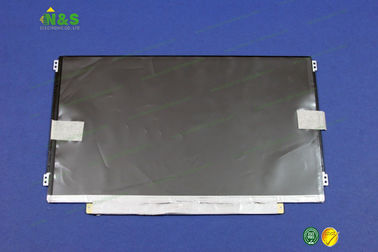

N116B6-L04 TFT LCD Module 11.6 inch, 1366×768 Active Area 256.125×144 mm Outline 278×168×3.6 mm
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V236BJ1-P03 | Innolux | 23.6" | 1366×768 |
| PH035NA-01B | Innolux | 3.5" | 320×480 |
| PH040NA-01B | Innolux | 4.0" | 480×800 |
| PH045NA-01A | Innolux | 4.5" | 480×854 |
| PH045NA-01B | Innolux | 4.5" | 480×854 |
| PB050IA-01A | Innolux | 5.0" | 540×960 |
| ZE065NA-01B | Innolux | 6.5" | 800×480 |
| ZE050NA-08D | Innolux | 5.0" | 640×480 |
| N070ICN-PB1 | Innolux | 7.0" | 800×1280 |
| N156BGE-P41 | Innolux | 15.6" | 1366×768 |
| V500HJ1-PE8 | Innolux | 50" | 1920×1080 |
| V400HJ6-PE1 | Innolux | 40" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
N116B6-L04 Basic Information
| Panel Model | N116B6-L04 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Ultra Slim |
N116B6-L04 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 135 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch | 0.1875×0.1875 mm (H×V) |
| Weight | 225/235g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 256.125×144 mm (H×V) |
| Bezel Area | 259.125×146.8 mm (H×V) |
| Outline Dimension | 278×168 mm (H×V) |
| Outline Depth | 3.3/3.6 (Typ./Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N116B6-L04 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
