Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1024×768 |
|---|---|---|---|
| Outline: | 261×198×5 Mm | Contrast Ratio: | 500:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

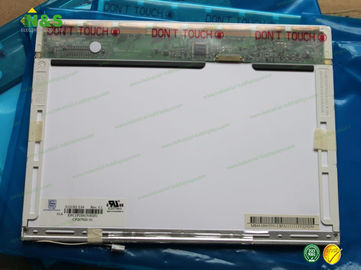

COM N121X5-L04 12.1 inch 245.76×184.32 mm Active Area Surface Antiglare (Haze 25%), Hard coating (3H)
N121X5-L04 Basic Information
| Panel Model | N121X5-L04 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N121X5-L04 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 240g (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.5×188.9 mm (H×V) |
| Outline Dimension | 261×198 mm (H×V) |
| Outline Depth | 4.7/5.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N121X5-L04 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 175 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
BOE BP080WX7-100 Optical Features
Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV550QUB-B10 | BOE | 55" | 3840×2160 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
| LH499WX1-SH01 | LG Display | 5.0" | 720×1280 |
| HSD045F8W1-C01 | HannStar | 4.5" | 480×854 |
| H160QVN01.0 | AUO | 1.6" | 320×320 |
| LSN133DL01-A02 | Samsung | 13.3" | 2560×1600 |
| LM195WD1-TJBA | LG Display | 19.5" | 1600×900 |
| LSC480HN08 | Samsung | 48" | 1920×1080 |
| TM050JYHP05 | Tianma | 5.0" | 720×1280 |
| F050A13-601 | Innolux | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
