Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 49 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Active Area: | 1073.78×604 Mm |
| Outline: | 1096.2×632.5×29.6 Mm | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

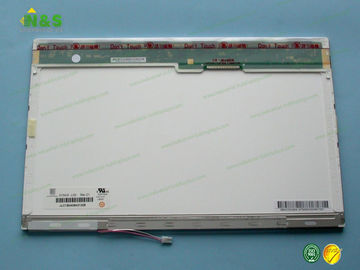

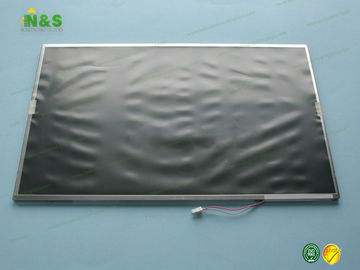

N154I3-L03 Normally White 15.4 inch new and original 1280×800 resolution Outline 344×222×6.2 mm Frequency 60Hz
N154I3-L03 Basic Information
| Panel Model | N154I3-L03 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,15.4 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N154I3-L03 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 98 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.08625×0.25875 mm (H×V) |
| Pixel Pitch | 0.25875×0.25875 mm (H×V) |
| Weight | 510/525g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 331.2×207 mm (H×V) |
| Bezel Area | 334.7×210.5 mm (H×V) |
| Outline Dimension | 344×222 mm (H×V) |
| Outline Depth | 6.2 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N154I3-L03 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
