Product Details:
|
| Panel Size: | 4.7 Inch | Panel Type: | CSTN-LCD |
|---|---|---|---|
| Resolution: | 320×240 | Active Area: | 95.98×71.98 Mm |
| Surface: | Antiglare | Frequency: | 75Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

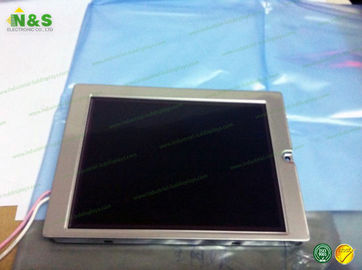

KCG047QV1AA-A210 4.7 inch TFT-LCD Module Resolution 320×240 Outline 122.4×90×11.4 mm Frequency 75Hz
KCG047QV1AA-A210 Basic Information
| Panel Model | KCG047QV1AA-A210 |
| Panel Brand | Kyocera |
| Descrition | CSTN-LCD ,4.7 inch, 320×240 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
KCG047QV1AA-A210 Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 84 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.100×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 120g |
| Surface | Antiglare |
| Active Area | 95.98×71.98 mm (H×V) |
| Bezel Area | 100.6×76.6 mm (H×V) |
| Outline Dimension | 122.4×90 mm (H×V) |
| Outline Depth | 7.6/11.4 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
KCG047QV1AA-A210 Optical Features
| Display Mode | STN, Normally Black, Transmissive |
| Brightness | 160 cd/m² (Typ.) |
| Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 490 (Typ.)(Tr+Td) |
| Viewing Angle | 50/50/15/35 (Typ.)(CR≥2) (L/R/U/D) |
| Sunlight Readable | N |
