Product Details:
|
| Panel Size: | 5.7 Inch | Dot Resolution: | 320×240 |
|---|---|---|---|
| Display Mode: | TN, Normally White | Active Area: | 115.2×86.4 Mm |
| Surface: | Antiglare | Contrast Ratio: | 450 : 1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

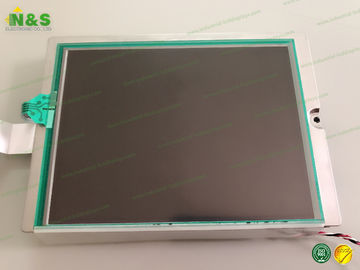

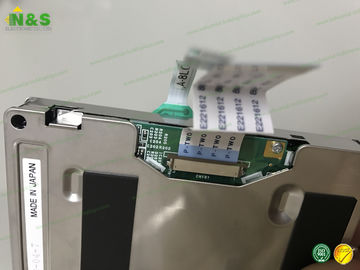

Normally White yocera TCG057QVLAD-G00 5.7 inch TFT LCD Module 320×240 resolution Outline 144×104.8×15.6 mm
TCG057QVLAD-G00 Basic Information
| Panel Model | TCG057QVLAD-G00 |
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
TCG057QVLAD-G00 Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 260g |
| Surface | Antiglare |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 119.8×91.0 mm (H×V) |
| Outline Dimension | 144×104.8 mm (H×V) |
| Outline Depth | 14.8±0.8 mm |
| Holes & Brackets | Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
TCG057QVLAD-G00 Optical Features
| Display Mode | TN, Normally White |
| Brightness | 280 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥5) (L/R/U/D) |
| White color Chromaticity | Wx:0.320; Wy:0.350 |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
