Product Details:
|
| Panel Module: | LA123WF1-SL01 | Panel Size: | 12.3 Inch |
|---|---|---|---|
| Resolution: | 1920×720 | Active Area: | 292.032×109.512 Mm |
| Outline: | 310×128×20.6 Mm | Surface: | Hard Coating |
| Highlight: | lg display panel,lg lcd display |
||

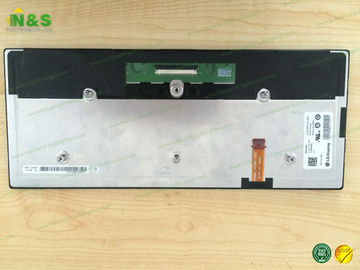

Resolution 1920×720 LA123WF1-SL01 12.3 inch Normally Black Active Area 292.032×109.512 mm
LA123WF1-SL01 Basic Information
| Panel Model | LA123WF1-SL01 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,12.3 inch, 1920×720 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -40 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 3.0G (29.4 m/s²) |
LA123WF1-SL01 Mechanical Features
| Dot Resolution | 1920(RGB)×720 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 167 PPI |
| Aspect Ratio | 8:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0507×0.1521 mm (H×V) |
| Pixel Pitch | 0.1521×0.1521 mm (H×V) |
| Weight | 395/405g (Typ./Max.) |
| Surface | Hard coating |
| Active Area | 292.032×109.512 mm (H×V) |
| Outline Dimension | 310×128 mm (H×V) |
| Outline Depth | 8.2/20.6 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting Pole |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
| Panel Model | Brand | Size | Resolution |
| LH500WX1-SD01 | LG Display | 5.0" | 720×1280 |
| LD070WX3-SH01 | LG Display | 7.0" | 800×1280 |
| LH154Q01-TH01 | LG Display | 1.54" | 240×240 |
| LH467WX1-SH01 | LG Display | 4.7" | 768×1280 |
| LH350WV3-SH01 | LG Display | 3.5" | 480×854 |
| LH370WV2-SH01 | LG Display | 3.7" | 480×800 |
| LD070WS1-SL01 | LG Display | 7.0" | 1024×600 |
| LH450WX1-SH01 | LG Display | 4.5" | 720×1280 |
| LH430M01-SH01 | LG Display | 4.3" | 540×960 |
| LH400WV4-SH01 | LG Display | 4.0" | 480×800 |
