Product Details:
|
| Panel Type: | LCM, IGZO TFT-LCD | Pixel Format: | 1920(RGB)×1080 (FHD) |
|---|---|---|---|
| Active Area: | 344.16 × 193.59 (H×V) | Treatment: | Antiglare, Hard Coating (3H) |
| Screen Size: | 15.6 Inch | Refresh Rate: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

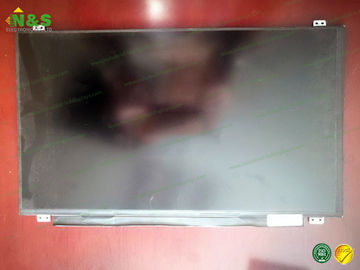

Panda LM156LF1L03 15.6 inch Antiglare, Hard coating (3H) Luminance 250 cd/m² (Typ.) Refresh Rate 60Hz
Manufacturer :PANDA
Model Name:LM156LF1L03
Screen Size:15.6 inch
Screen Type: LCM, IGZO TFT-LCD
Pixel Number: 1920(RGB)×1080 (FHD)
Arrangement:RGB Vertical Stripe
Active Area(mm):344.16 × 193.59 (H×V)
Outline(mm):359.5 × 223.8 × 3.2 (H×V×D)
Treatment:Antiglare, Hard coating (3H)
Luminance:250 cd/m² (Typ.)
Contrast Ratio: 1000 : 1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
Response:25 (Typ.)(Tr+Tf) ms
Good View at:Symmetry
Work Mode:FFS, Normally Black, Transmissive
Color Depth:262K 45% (CIE1931)
Backlight:WLED , 10K hours , With LED Driver
Outline Shape:Slim (PCBA Flat, Depth ≤3.2mm)
Refresh Rate:60Hz
Touchscreen:Without
Signal Type:eDP (2 Lanes) , Connector , 30 pins
Voltage Supply:3.3V (Typ.)
Max. Ratings:Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
