Product Details:
|
| Panel Size: | 5.5 Inch | Resolution: | 1080×1920 |
|---|---|---|---|
| Active Area: | 68.04×120.96 Mm | Outline: | 70.84×128.56×1.65 Mm |
| Frequency: | 60Hz | ||
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

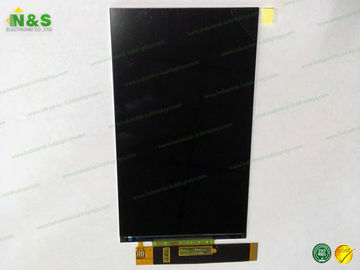

LQ055T3SX02Z 5.5 inch SHARP LCD Panel Normally Black with 68.04×120.96 mm Active Area Contrast Ratio 1000:1 (Typ.)
Specification of LQ055T3SX02Z:
| Panel Model | LQ055T3SX02Z |
| Panel Brand | SHARP |
| Descrition | IGZO TFT-LCD ,5.5 inch, 1080×1920 |
| Panel Type | IGZO TFT-LCD |
| Display Mode | New Mode2, Normally Black, Transmissive |
| Active Area | 68.04×120.96 mm |
| Outline | 70.84×128.56×1.65 mm |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 85% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S2P WLED Without Driver |
| Signal Interface | MIPI (4 data lanes) , 39 pins |
| Input Voltage | 1.8/5.8/5.6V (Typ.)(VDDI/VSP/VSN) |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
