Product Details:
|
| Panel Size: | 10.6 Inch | Resolution: | 1280×768 |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 230.4×138.24 Mm |
| Outline: | 257.8×152×5 Mm | Contrast Ratio: | 350:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

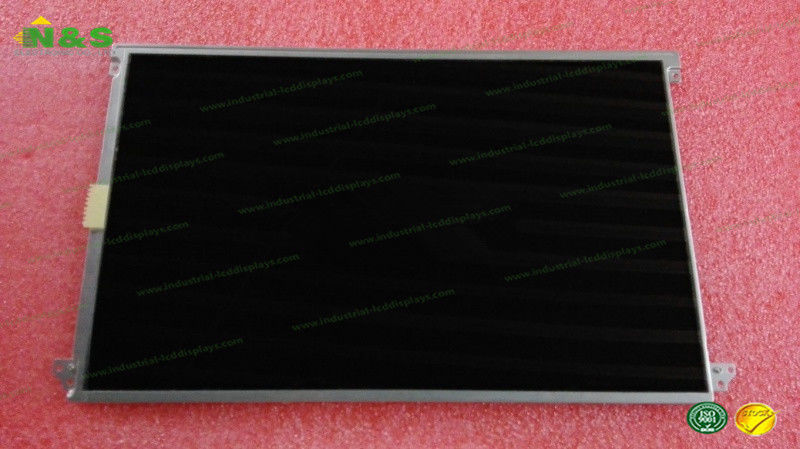

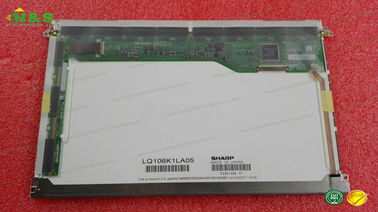

Normally White LQ106K1LA05 TFT-LCD Module 10.6 inch, 1280×768 Surface Glare (Haze 0%), Hard coating (2H), Antireflection
Packaging & Delivery
Delivery Lead Time :2~3 weeks
Minimum Order :1 pcs LCD Panel
Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Primary Competitive Advantages:
Brand-name Parts
Country of Origin
Guarantee/Warranty
International Approvals
Packaging
Price
Product Features
Product Performance
Quality Approvals
Reputation
Service
Small Orders Accepted
LQ106K1LA05 Basic Information
| Panel Model | LQ106K1LA05 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,10.6 inch, 1280×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LQ106K1LA05 Mechanical Features
| Dot Resolution | 1280(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.060×0.180 mm (H×V) |
| Pixel Pitch | 0.180×0.180 mm (H×V) |
| Weight | 175g (Typ.) |
| Surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area | 230.4×138.24 mm (H×V) |
| Bezel Area | 235.2×143.0 mm (H×V) |
| Outline Dimension | 257.8×152 mm (H×V) |
| Outline Depth | 5.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (6 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CPT CLAA080MA01CW Signal Interface
Signal Category :TTL
Signal Class : TTL (1 ch, 6-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 150/200mA (Typ./Max.)
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Type : Connector
Signal Interface : Brand:Conn-Tek
Model:FR03-S40D-2-E3000
Pin Pitch:0.5 mm
Pins:40 pins
Amount:1 pcs
Configuration:DRGB-40P1C6B-040A
