Product Details:
|
| Panel Model: | LQ121X1LH83 | Panel Brand: | SHARP |
|---|---|---|---|
| Size: | 12.1 Inch | Panel Type: | A-Si TFT-LCD |
| Active Area: | 245.76×184.32 Mm | Surface: | Antiglare, Hard Coating (2H), Antireflection |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

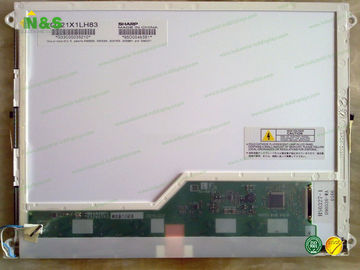

LQ121X1LH83 Basic Information
| Panel Model | LQ121X1LH83 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LQ0DZA0080 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
LQ121X1LH83 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 245g (Typ.) |
| Surface | Antiglare, Hard coating (2H), Antireflection |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.8×188.4 mm (H×V) |
| Outline Dimension | 274.5×197.5 mm (H×V) |
| Outline Depth | 3.4~5.35 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Our Company Strength in LCD Screen Sourcing:
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
