Product Details:
|
| Panel Size: | 7.0 Inch | Active Area: | 152.4×91.44 Mm |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 800:1 (Typ.) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

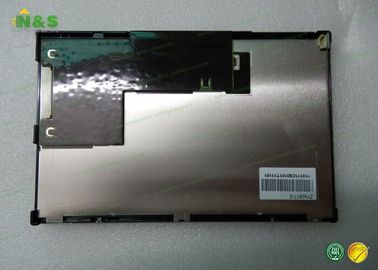

Normally Black LQ070Y3LW01 SHARP 7.0 inch, 800×480 Surface Antiglare, Hard coating (3H) new and original
LQ070Y3LW01 Mechanical Features
| Dot Resolution | 800×480(RGB) (WVGA) |
| Pixel Configuration | RGB Horizontal Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1905×0.0635 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 175g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 152.4×91.44 mm (H×V) |
| Bezel Area | 155.40×92.94 mm (H×V) |
| Outline Dimension | 163.2×104 mm (H×V) |
| Outline Depth | 9.0±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M2) on up, down bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
LQ070Y3LW01 Optical Features
| Display Mode | ASV, Normally Black, Transmissive |
| Brightness | 360 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.310; Wy:0.340 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
