Product Details:
|
| Panel Size: | 15.0 Inch | Resolution: | 1024×768 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Active Area: | 304.1×228.1 Mm |
| Outline: | 331.6×254.8×32.35 Mm | Surface: | Hard Coating (2H) |
| Display Mode: | TN, Normally White, Transmissive | ||
| High Light: | sharp lcd display panels,sharp lcd screen |
||

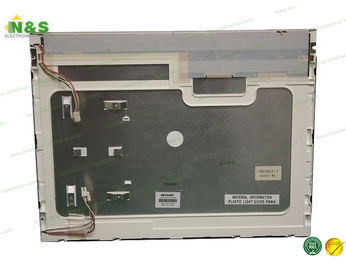

15.0inch LQ150X1LCD3 high resolution 1024×768 TN, Normally White, Transmissive Contrast Ratio 400:1 (Typ.) TFT LCD Panel
LQ150X1LCD3 Basic Information
| Panel Model | LQ150X1LCD3 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 65 °C |
| Storage Temperature | -30 ~ 70 °C |
LQ150X1LCD3 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.32±0.05Kgs |
| Surface | Hard coating (2H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.2×231.1 mm (H×V) |
| Outline Dimension | 331.6×254.8 mm (H×V) |
| Outline Depth | 31.85±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LQ150X1LCD3 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
BOE BP080WX7-100 Optical Features
Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
