Product Details:
|
| Panel Brand: | SHARP | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Panel Size: | 5.7 Inch | Resolution: | 720×240 |
| Display Colors: | Full Color | Lamp Type: | 2 Pcs CCFL |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

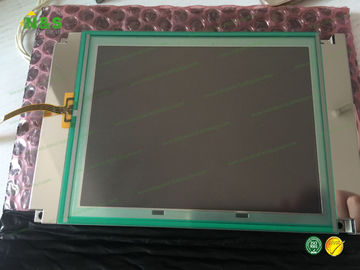

TFT LCD LQ6RA01 5.7 inch, 720×240 resolution Normally White Outline 149.4×117 mm,Active Area 113.8×87.6 mm
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LQ6RA01 Basic Information
| Panel Model | LQ6RA01 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,5.7 inch, 720×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -25 ~ 60 °C |
| Remarks | NTSC(M) / PAL(BG) |
LQ6RA01 Mechanical Features
| Dot Resolution | 720×240 |
| Pixel Configuration | RGB Delta |
| Pixel Density | 60 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.158×0.365 mm (H×V) |
| Weight | 310±20g |
| Active Area | 113.8×87.6 mm (H×V) |
| Outline Dimension | 149.4×117 mm (H×V) |
| Outline Depth | 23 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LQ6RA01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 120 cd/m² (Typ.) |
| Contrast Ratio | 30 : 1 (Min.) (Transmissive) |
| Display Color | Full color () |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.297; Wy:0.312 |
| Sunlight Readable | N |
