Product Details:
|
| Panel Type: | CSTN-LCD | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 320×240 | Contrast Ratio: | 30:1 (Typ.) |
| Display Colors: | Color | Outline: | 134×100 Mm |
| Brightness: | 100 Cd/m² (Typ.) | Lamp Type: | CCFL |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

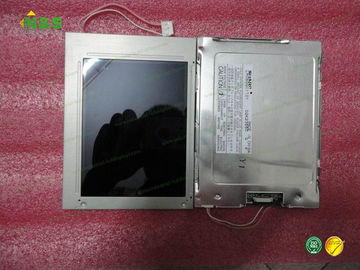

Normally Black LM050QC1T01 5.0 inch lcd module 320×240 resolution Outline 134×100 mm Lamp Type 1 pcs CCFL Without Driver
LM050QC1T01 Basic Information
| Panel Model | LM050QC1T01 |
| Panel Brand | SHARP |
| Descrition | CSTN-LCD ,5.0 inch, 320×240 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 60 °C |
LM050QC1T01 Optical Features
| Display Mode | STN, Normally Black, Transmissive |
| Brightness | 100 cd/m² (Typ.) |
| Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 230/120 (Typ.)(Tr/Td) |
| Viewing Angle | 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.340 |
| Sunlight Readable | N |
LM050QC1T01 Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 80 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.105×0.315 mm (H×V) |
| Pixel Pitch | 0.315×0.315 mm (H×V) |
| Weight | 145g |
| Active Area | 100.775×75.575 mm (H×V) |
| Bezel Area | 105.2×80.0 mm (H×V) |
| Outline Dimension | 134×100 mm (H×V) |
| Outline Depth | 8.5 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
