Product Details:
|
| Descrition: | EL ,8.9 Inch, 640×400 | Dot Pitch: | 0.300×0.300 Mm (H×V) |
|---|---|---|---|
| Active Area: | 191.9×119.9 Mm (H×V) | Outline Dimension: | 246×175 Mm (H×V) |
| Brightness: | 200 Cd/m² (Typ.) | Pixel Density: | 84 PPI |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

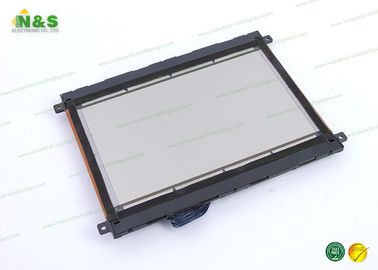

LJ64H034 Sharp 8.9 inch, 640×400 with 191.9×119.9 mm Active Area Brightness 200 cd/m² (Typ.)
LJ64H034 Basic Information
| Panel Model | LJ64H034 |
| Panel Brand | SHARP |
| Descrition | EL ,8.9 inch, 640×400 |
| Panel Type | EL |
| Operating Temperature | -5 ~ 55 °C |
| Storage Temperature | -40 ~ 80 °C |
LJ64H034 Mechanical Features
| Dot Resolution | 640×400 |
| Pixel Density | 84 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.300×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 450g |
| Active Area | 191.9×119.9 mm (H×V) |
| Outline Dimension | 246×175 mm (H×V) |
| Outline Depth | 19 mm |
| Holes & Brackets | Face mounting holes (4 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LJ64H034 Optical Features
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
