Product Details:
|
| Panel Type: | FSTN-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Outline: | 268×190 Mm |
| Frequency: | 85Hz | ||
| High Light: | sharp lcd display panels,sharp lcd screen |
||

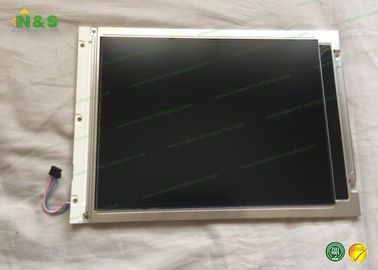

LM64P89L 10.4 inch LCD Module 640×480 Active Area 211.17×158.37 mm Outline 268×190 mm
LM64P89L Basic Information
| Panel Model | LM64P89L |
| Panel Brand | SHARP |
| Descrition | FSTN-LCD ,10.4 inch, 640×480 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -25 ~ 60 °C |
LM64P89L Mechanical Features
| Dot Resolution | 640×480 (VGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.330×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 340g (Typ.) |
| Active Area | 211.17×158.37 mm (H×V) |
| Bezel Area | 223.0×169.0 mm (H×V) |
| Outline Dimension | 268×190 mm (H×V) |
| Outline Depth | 7.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
