Product Details:
|
| Panel Type: | FSTN-LCD | Panel Size: | 7.2 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Frequency: | 85Hz |
| Active Area: | 147.18×110.38 Mm | Outline: | 200.5×141 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

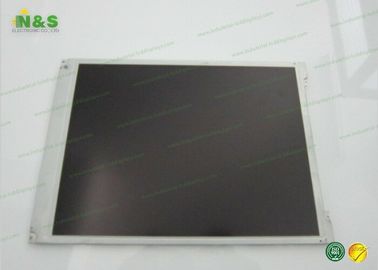

7.2 inch LM64K101 TFT LCD Module SHARP with 147.18×110.38 mm Active Area new and original
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
LM64K101 Basic Information
| Panel Model | LM64K101 |
| Panel Brand | SHARP |
| Descrition | FSTN-LCD ,7.2 inch, 640×480 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -20 ~ 60 °C |
LM64K101 Mechanical Features
| Dot Resolution | 640×480 (VGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 110 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.23×0.23 mm (H×V) |
| Pixel Pitch | 0.23×0.23 mm (H×V) |
| Weight | 260g (Typ.) |
| Active Area | 147.18×110.38 mm (H×V) |
| Bezel Area | 153.0×115.4 mm (H×V) |
| Outline Dimension | 200.5×141 mm (H×V) |
| Outline Depth | 7.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
