Product Details:
|
| Panel Type: | CSTN-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Display Mode: | STN, Normally Black, Transmissive |
| Active Area: | 211.18×158.38 Mm | Outline: | 246×193.6×8.5 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

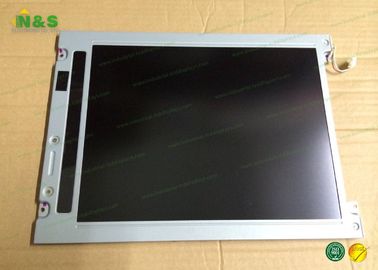

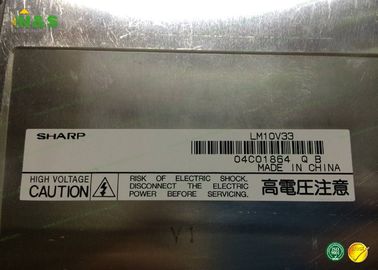

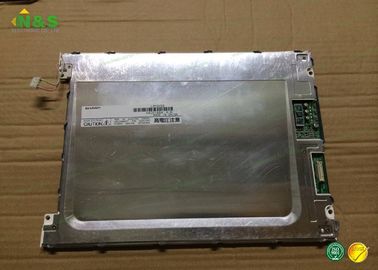

Normally Black LM10V33 10.4 inch Sharp 640×480 Active Area 211.18×158.38 mm new and original
LM10V33 Basic Information
| Panel Model | LM10V33 |
| Panel Brand | SHARP |
| Descrition | CSTN-LCD ,10.4 inch, 640×480 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -25 ~ 60 °C |
LM10V33 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 450g (Typ.) |
| Active Area | 211.18×158.38 mm (H×V) |
| Bezel Area | 215.4×162.4 mm (H×V) |
| Outline Dimension | 246×193.6 mm (H×V) |
| Outline Depth | 8.5 (Max.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
