Product Details:
|
| Panel Type: | A-Si TFT-LCD | Active Area: | 170.88×129.6 Mm |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (2H) | Contrast Ratio: | 60:1 (Typ.) |
| Panel Size: | 8.4 Inch | Resolution: | 640×480 |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

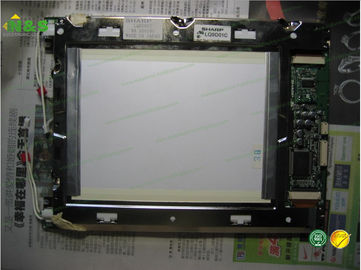

8.4 inch LQ9D011 with 170.88×129.6 mm Active Area Antiglare, Hard coating (2H) 2 pcs CCFL Without Driver
LQ9D011 Basic Information
| Panel Model | LQ9D011 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,8.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
LQ9D011 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 94 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.089×0.270 mm (H×V) |
| Pixel Pitch | 0.267×0.270 mm (H×V) |
| Weight | 575±20g |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 170.88×129.6 mm (H×V) |
| Bezel Area | 182.8×142.6 mm (H×V) |
| Outline Dimension | 243.5×180 mm (H×V) |
| Outline Depth | 12 (Typ.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-R1.7) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
