Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Active Area: | 304.1×228.1 Mm | Outline: | 326×252×11.5 Mm |
| Contrast Ratio: | 350:1 (Typ.) | Frequency: | 60Hz |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

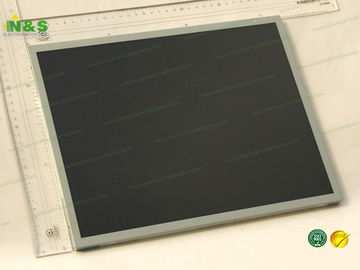

LQ150X1LGN7 SHARP 15.0 inch Normally White, Transmissive with 304.1×228.1 mm Active Area
LQ150X1LGN7 Basic Information
| Panel Model | LQ150X1LGN7 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LQ0DZA0013 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
LQ150X1LGN7 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Max.) |
| Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 326×252 mm (H×V) |
| Outline Depth | 11.0±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
