Product Details:
|
| Panel Type: | A-Si TFT-LCD | Resolution: | 1024×768 |
|---|---|---|---|
| Descrition: | 15.0 Inch | Active Area: | 304.1×228.1 Mm |
| Outline: | 326×252×11.5 Mm | Frequency: | 60Hz |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

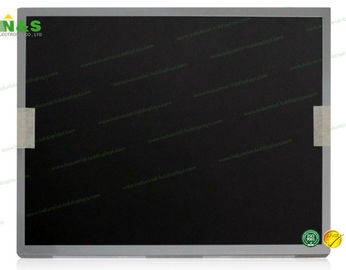

Normally White 15.0 inch LQ150X1LGN2C high resolution 1024×768 Outline 326×252×11.5 mm Frequency 60Hz
LQ150X1LGN2C Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.10Kgs (Max.) |
| Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 326×252 mm (H×V) |
| Outline Depth | 11.0±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LQ150X1LGN2C Basic Information
| Panel Model | LQ150X1LGN2C |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LQ0DZA0057 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
LQ150X1LGN2C Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
