Product Details:
|
| Panel Size: | 15.0 Inch | Resolution: | 1024×768 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Display Colors: | 262K (6-bit) |
| Contrast Ratio: | 300:1 (Typ.) | Frequency: | 60Hz |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

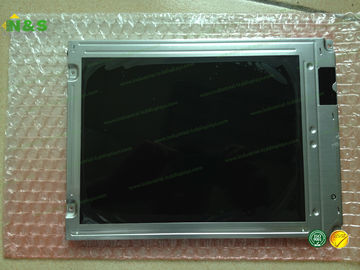

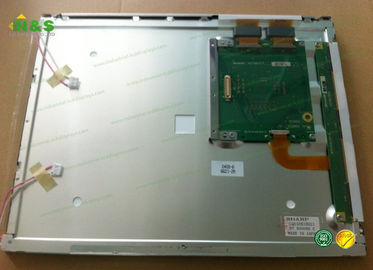

LQ150X1DG11 SHARP 15.0 inch TN, Normally White, Transmissive Outline 331.3×257.9 mm Frequency 60Hz
LQ150X1DG11 Basic Information
| Panel Model | LQ150X1DG11 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
LQ150X1DG11 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.30Kgs (Max.) |
| Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.2×232.1 mm (H×V) |
| Outline Dimension | 331.3×257.9 mm (H×V) |
| Outline Depth | 15.9 (Typ.) mm |
| Holes & Brackets | Side mounting holes (8-M2.5) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
LQ150X1DG11 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/35 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.35 (Max.)(5 points) |
| Sunlight Readable | N |
