Product Details:
|
| Panel Model: | LQ12S41 | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Frequency: | 60Hz | Panel Size: | 12.1 Inch |
| Resolution: | 800×600 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

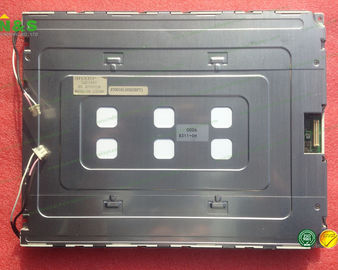

Normally White LQ12S41 12.1 inch, 800×600 TFT-LCD Module Active Area 246×184.5 mm Outline 290×225×13.7 mm
LQ12S41 Specification
| Panel Model | LQ12S41 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 246×184.5 mm |
| Outline | 290×225×13.7 mm |
| Surface | Antiglare (Haze 28%), Hard coating (3H) |
| Contrast Ratio | 150:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/55/55 (Min.)(CR≥5) (L/R/U/D) |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 41 pins |
| Input Voltage | 3.3V (Typ.)(VCC) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
