Product Details:
|
| Panel Size: | 10.4 Inch | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Resolution: | 640×480 |
| Contrast Ratio: | 300:1 (Typ.) | Frequency: | 60Hz |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

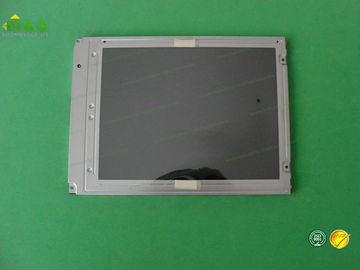

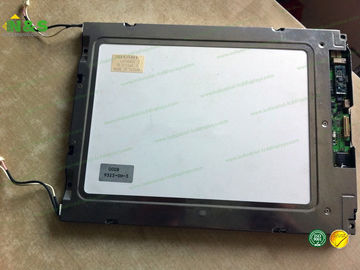

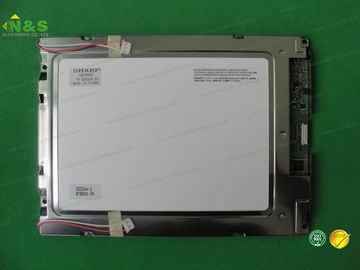

LQ10D421 10.4 inch, 640×480 Active Area 211.2×158.4 mm Outline 265×195×11.5 mm Frequency 60Hz
LQ10D421 Basic Information
| Panel Model | LQ10D421 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 65 °C |
| Storage Temperature | -30 ~ 70 °C |
| Remarks | Sharp Internal Model Number: LQ10D421A, LQ10D421G. LAST SHIP DATE:8 July 2011 |
LQ10D421 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 620g (Max.) |
| Surface | Clear, Hard coating (3H), Antireflection |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 214.6×162.4 mm (H×V) |
| Outline Dimension | 265×195 mm (H×V) |
| Outline Depth | 11.5 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
